Trommel Screen

Applied material --- ore mineral, sand and stone

Applied fields --- mineral and solid-waste processing industries

Capacity12–150 t/h

Feeding size50–150 mm

Are you interested in our machines?

Brief Introduction

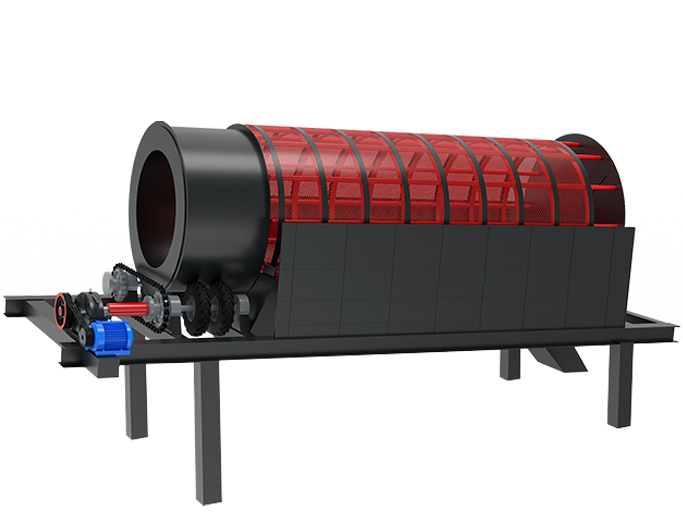

A trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries, and also be used for separation and screening of sand and stone in the sandstone field It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end.

The screening effect is good. The 60-200 mesh screen has a wide range of applications, low working environment requirements, and can be customized to meet different production needs.

Advantages

The special screen of the FTM trommel screen is not easy to block, and the screening efficiency is high, which is more than 1.5 times higher than the previous equipment.

The trommel screen adopts a full sealing device, and the screening cylinder can be closed, which is easy to close and collect dust.

The trommel screen is automatically controlled and has a high automatic program.

The unique design effectively reduces vibration, making the machine run more smoothly and take up less space, and easy to process.

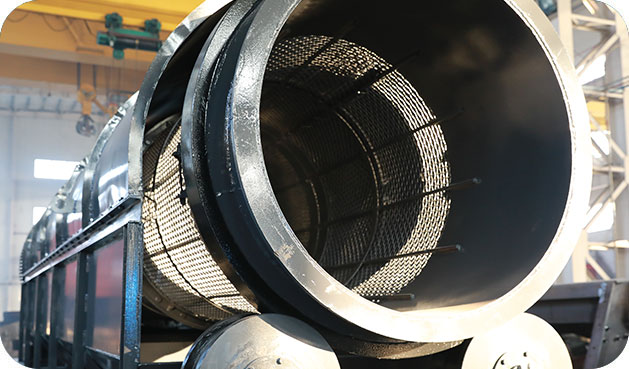

Working Principle

When the material enters the trommel screen, because of drum inclining and rolling, it make the material on the surface of the screen constantly turning and rolling. Smaller than screen hole size of materials will be discharged at the bottom of the discharging mouth, while the greater size materials than the screen hole will be discharged at the end of the discharging mouth. The equipment adopts a parallel sieve to form the sieve, and the size of the gap is the size of the required material size. When the drum is rotated, gravity of the material will help screening. The shaft is higher than the screen, and the bulk material can be moved when rotating, thus improving the screening efficiency. The material is accelerated by inclined slope, and finally enters into the next process.

Technical Data

Model	Capacity (t/h)		Power (kw)
Model	Sieve hole(2mm)	Sieve hole(30mm)	Power (kw)
YTS1230	4-12	16-50	5.5
YTS1240	4.5-14	20-60	5.5
YTS1250	5-15	23-70	5.5
YTS1530	6-18	25-75	5.5
YTS1540	6-18	25-75	7.5
YTS1550	7-20	26-80	11
YTS1560	7-22	33-100	11
YTS2040	8-25	40-120	11
YTS2050	10-30	50-150	11
YTS2060	12-35	55-175	11

Model	Capacity (t/h)		Power (kw)
Model	Sieve hole(2mm)	Sieve hole(30mm)	Power (kw)
YTS1230	4-12	16-50	5.5
YTS1240	4.5-14	20-60	5.5
YTS1250	5-15	23-70	5.5
YTS1530	6-18	25-75	5.5
YTS1540	6-18	25-75	7.5
YTS1550	7-20	26-80	11
YTS1560	7-22	33-100	11
YTS2040	8-25	40-120	11
YTS2050	10-30	50-150	11
YTS2060	12-35	55-175	11

GLOBAL COOPERATION

Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc.
