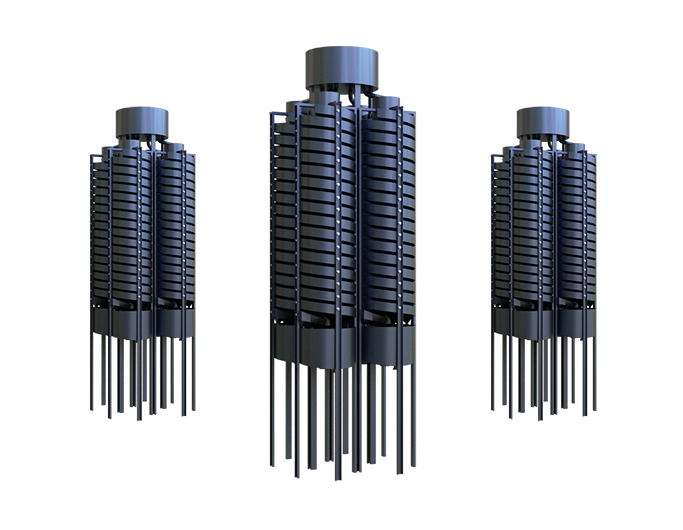

Spiral Concentrator

Applied material --- gold ore, iron ore, copper ore, chromite, aluminum ore, pyrrhotite, hematite, tungsten ore, tin ore, and other non-ferrous metals

Applied material --- recycling various fine minerals

Capacity0.15-6 t/h

Spiral diameter300-3000 mm

Are you interested in our machines?

Brief Introduction

Spiral concentrator, also known as mineral spiral separator, spiral concentrator, spiral concentrator, gravity spiral concentrator, is suitable for recycling various fine minerals, improving resource utilization, and rationally and effectively developing and utilizing mineral resources.

The spiral concentrator is suitable for sorting fine iron ore, copper ore, chromite, aluminum ore, pyrrhotite, hematite, tungsten ore, tin ore, gold ore, and other non-ferrous metals and rare metals with different specific gravity. The spiral concentrators produced by FTM are divided into four types: DL2000, DL1500, LL1200 and LL900. You can purchase them according to your actual needs.

Advantages

The spiral concentrator has a small footprint, moisture proof, antirust, corrosion resistance and no noise.

It consumes little water and electric power and has a large processing amount and low investment cost.

The ore dressing is stable; the mine is clear, and the recovery rate is high.

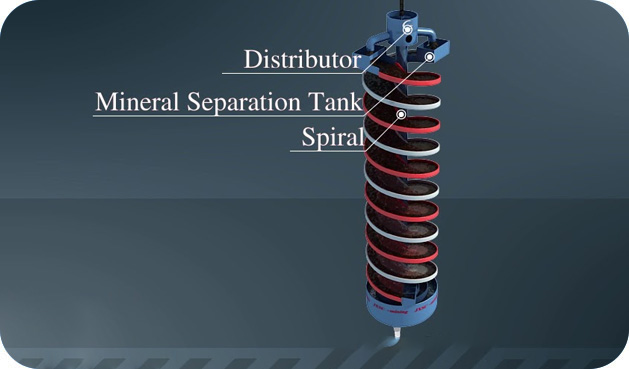

Working Principle

The spiral concentrator is installed vertically, and the ore is pumped from the sand to the two feed ports on the top of the spiral concentrator to adjust the density of the slurry. The ore pulp is naturally fed from high to low, and inertial centrifugal force is generated in the rotating inclined flow velocity.

According to the specific gravity, particle size and shape of the ore, the ore is separated by the gravity and centrifugal force of the cyclone separator. The concentrate flows into the concentrate hopper, which is connected with the pipeline. The tailings flow into the tailings hopper, are connected to the sand tank through pipelines, and are discharged by the sand pump. The whole beneficiation process has just been completed.

Technical Data

Model	Processing capacity (t/h)
DL2000	15-40
DL1500	8-16
LL1200	4-6
LL900	2-3

Model	Processing capacity (t/h)
DL2000	15-40
DL1500	8-16
LL1200	4-6
LL900	2-3

GLOBAL COOPERATION

Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc.
