Applied material --- gold, iron copper, tungsten, lead, zinc, antimony, bismuth, manganese, etc
Applied fields --- beneficiation device for seperating fine-grained mineral
Capacity10–60 t/h
Feeding size0.15–2 mm
Are you interested in our machines?

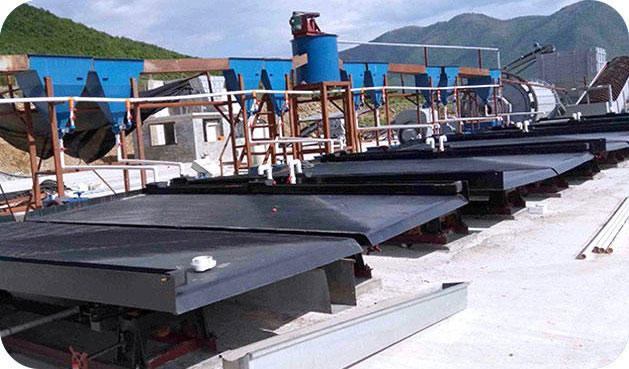

A gold shaking table (also known as gold gravity separation) is a commonly used beneficiation device for sorting fine-grained materials in minerals according to their density. The sorting precision is high.

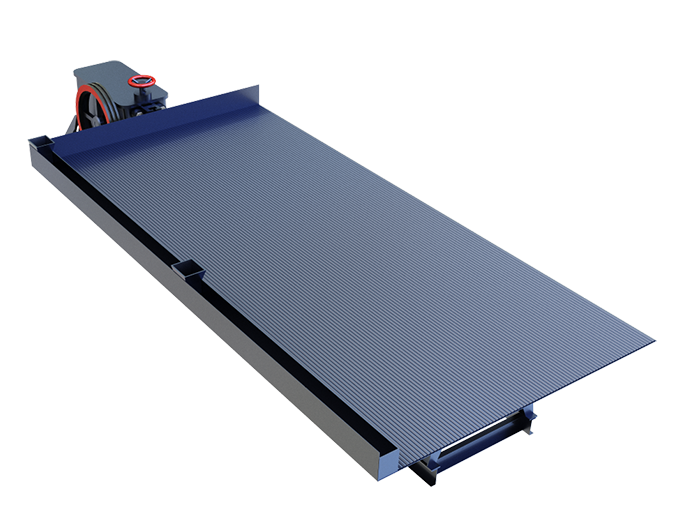

The shaking table comprises eight parts, including the bed head, motor, slope regulator, bed surface, mine tank, water tank, rifling bar and lubrication system. The longitudinal reciprocating motion of the bed surface is realized through the crank-link transmission mechanism.
No need for chemicals, low energy consumption, cost saving, simple operation, easy management.
The finished concentrate and tailings can be obtained at one time, and the sorting effect is good.
Competitive price, with high cost performance.
6-S Gold Shaking table, sometimes also known as wet tables, consist of a vibrating riffled deck mounted on some type of support. A motor, usually mounted separately off to the side, drives a small arm that shakes the table along its length. The riffles are usually not more than half an inch high and cover only about half the table surface. Varied riffle designs are available for specific types of applications. Shaking tables are very efficient in recovering heavy minerals from minus 100 microns (150 mesh) down to 5 microns in size.
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length (mm) |
4450 | 4450 | 4450 |
| Driving part Width (mm) |
1855 | 1855 | 1855 | |
| Concentrate part Width (mm) |
1546 | 1546 | 1546 | |
| Max.feeding size(mm) |
2 | 0.5 | 0.15 | |
| Feeding amount (t/d) |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke (mm) |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity (t/d) |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area(㎡) |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
| Name | Max.feeding size（mm） |
Feeding amount （t/d） |
| Grit concentrator table |
2 | 30-60 |
| Fine sand concentrator table |
0.5 | 10-20 |
| Sludge concentrator table |
0.15 | 15-25 |
We will deliver products timely by contract. We will supply you with installation drawings, specifications and operation manual. We offer lifetime warranty and components for products.
