Rod Mill

Rod Mill

Applied material --- various ores, such as granite, marble, limestone, quartz sand, dolomite, and other stone

Applied fields --- mineral crushing and grinding

Capacity3-120 t/h

Feeding size≤25 mm-≤50mm

Are you interested in our machines?

Brief Introduction

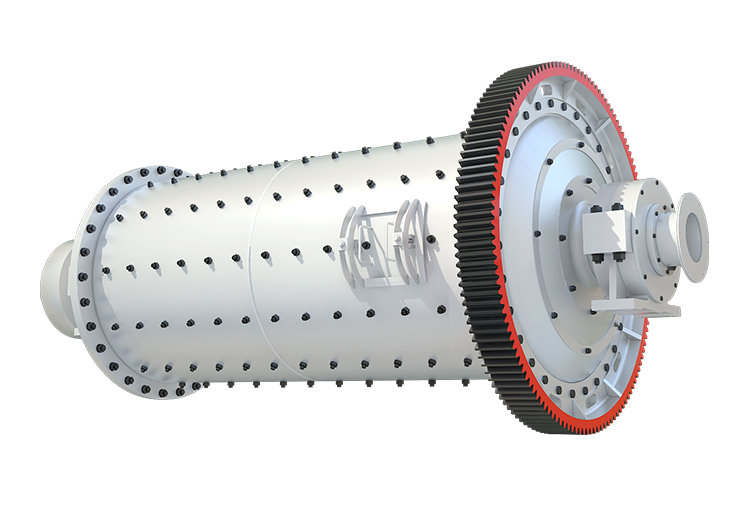

Rod mill is the key equipment for grinding after materials are crushed at crushing plant. Rod mill is an efficient crushing machine for grinding various materials into powder. Rod mills are grinding machine which employ high carbon steel or special steel rods of nearly the same length as that of the drum, in place of steel balls in ball mills. Rod mills crush generally coarser than those produced in Ball mill, and rod mills are well suited to handle coarser feed and to control the bigger size of the product.

Advantages

Energy saving is 50% higher than traditional rod mills and rod mill has stable operation and adjustable fineness of discharge.

It is made of wear-resistant materials, which is durable and has a low failure rate.

The rod mill cylinder is fully enclosed and sealed to reduce dust pollution.

Lubrication design is reasonable, having high safety performance and sound insulation, and reducing noise pollution.

Working Principle

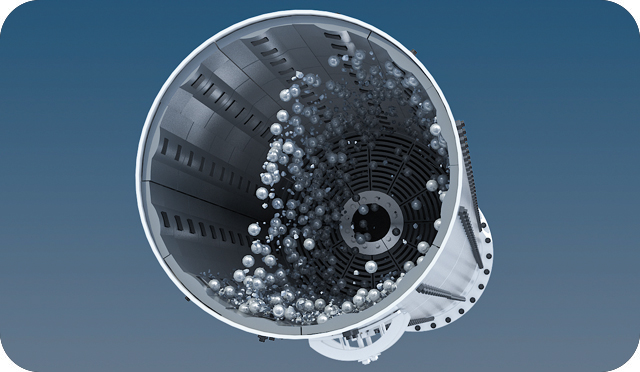

The rod mill adopts advanced controllable feeding and discharging technology, which changes the traditional surface contact into line contact. When the frame rotates, centrifugal force is produced. At the same time, the steel rods are carried to some height and then fall to grind and strike the material. After grinded in the crushing chamber, the powder is discharges by output material board.

Technical Data

Model	Shell Specifications (mm)		Shell rotation speed (r/min)	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
Model	Diameter	Length	Shell rotation speed (r/min)	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
MBS0918	900	1800	36-38	≤25	0.833-0.147	0.62-3.2	18.5	5.9
MBS0924	900	2400	36	≤25	0.833-0.147	0.81-4.3	22	6.7
MBS1224	1200	2400	36	≤25	0.833-0.147	1.1-4.9	30	13.9
MBS1530	1500	3000	29.7	≤25	0.833-0.147	2.4-7.5	75	19.8
MBS1830	1830	3000	25.4	≤25	0.833-0.147	4.8-11.6	130	34.9
MBS2130	2100	3000	23.7	≤25	0.833-0.147	14-35	155	46.5
MBS2136	2100	3600	23.7	≤25	0.833-0.147	19-43	180	48.7
MBS2430	2400	3000	21	≤50	0.833-0.147	25-65	245	59.7
MBS2736	2700	3600	20.7	≤50	0.833-0.147	32-86	380	92.5
MBS2740	2700	4000	20.7	≤50	0.833-0.147	32-92	400	95
MBS3245	3200	4500	18	≤50	0.833-0.147	64-180	630	149

Model	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)
MBS0918	≤25	0.833-0.147	0.62-3.2
MBS0924	≤25	0.833-0.147	0.81-4.3
MBS1224	≤25	0.833-0.147	1.1-4.9
MBS1530	≤25	0.833-0.147	2.4-7.5
MBS1830	≤25	0.833-0.147	4.8-11.6
MBS2130	≤25	0.833-0.147	14-35
MBS2136	≤25	0.833-0.147	19-43
MBS2430	≤50	0.833-0.147	25-65
MBS2736	≤50	0.833-0.147	32-86
MBS2740	≤50	0.833-0.147	32-92
MBS3245	≤50	0.833-0.147	64-180

GLOBAL COOPERATION

Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc.
