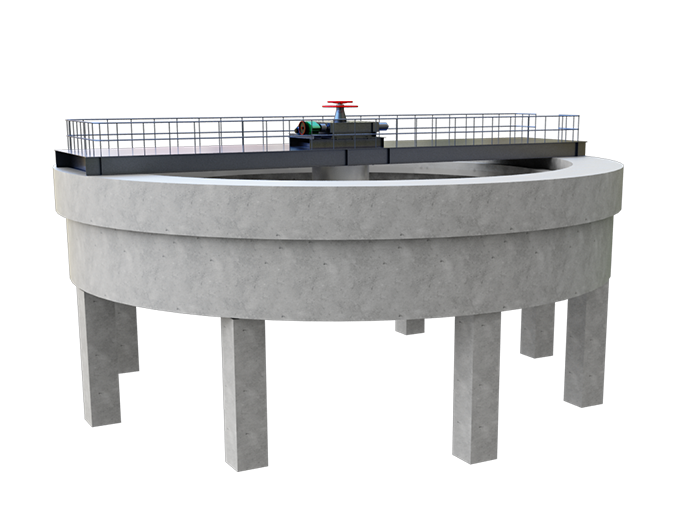

Ore Thickener Tank

Applied material --- mineral concentrates, tailings, mineral sands slimes, mineral mud, tailings slurry, waste water, waste slag, etc.

Applied fields --- dewatering process of concentrates and tailings in the mineral processing plant and tailing processing.

Capacity5.6–6250 t/d

Total weight1.8–204.6 t

Are you interested in our machines?

Brief Introduction

The ore thickener tank is a continuous working concentrated and clarified multi-function equipment, mainly used for the concentration and clarification of concentrate and tailings slurry in wet beneficiation and coal preparation. It is highly efficient, energy-saving and eco-friendly.

Advantages

The ore thickener tank is simple in structure and equipped with complete self-control facilities for automated production.

The sedimentation speed is fast and the equipment has inclined plates, increasing the settlement area and the processing capacity can be increased by 30-50%.

Concentrate dewatering can ensure the quality of concentrate, improve the utilization of concentrate, reduce transportation costs and save water resources.

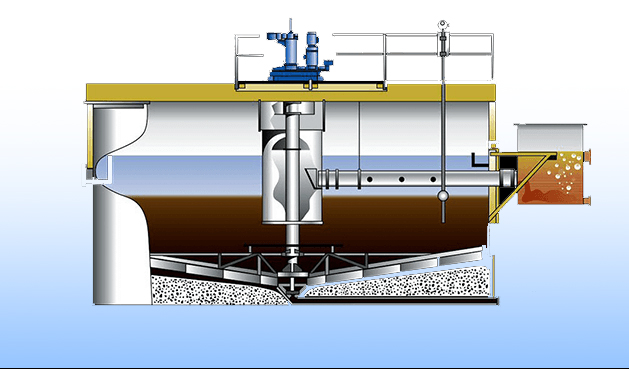

Working Principle

In the industrial beneficiation process, the wet concentrate sorted by the flotation machine or the magnetic separator is transported to the concentrate pool for concentration and sedimentation. The ore thickener tank is mainly composed of a circular concentrating tank and a squeegee scraper. The ore thickener tank is not simply a sedimentation device, but a new type of dewatering device that combines the filtration characteristics of the mud layer.

Technical Data

Specification		Concentration pond (m)		Deposit square(m²)	Harrow part			Motor		Processing capacity (t/d)
Model	Specification	Inner diameter	Depth	Pond degree	Method	Height (m)	Rotation time (min/r)	Driving	Lifting	Processing capacity (t/d)
NZS-1	Φ1.8m	1.8	1.8	2.54	Manual	0.16	2	Y90L-6 1.1KW	----	5.6
NZS-3	Φ3.6m	3.6	1.8	10.2	Manual	0.35	2.5	Y90L-6 1.1KW	----	22.4
NZS-6	Φ6m	6	3	28.3	Manual	0.2	3.7	Y90S-4 1.1KW	----	62
NZSF-6	Φ6m	6	3	28.3	Manual	----	3.7	Y90S-4 1.1KW	----	62
NZ-9	Φ9m	9	3	63.6	Auto	0.25	4.34	Y132S-6 3KW	XWD0.8-3 0.8KW	140
NZS-9	Φ9m	9	3	63.6	Manual	0.25	4.34	Y132S-6 3KW	----	140
NZS-12	Φ12m	12	3.5	113	Manual	0.25	5.28	JTC752A-44 5.2KW	----	250
NZ-15	Φ15m	15	4.4	176	Auto	0.4	10.4J	JTC752A-44 5.2KW	Y112M-6 2.2KW	350
NZ-20	Φ20m	20	4.4	314	Auto	0.4	10.4	Y100L1-4 5.2KW	Y112M-6 2.2KW	960
NZ-30	Φ30m	30	7.165	707	----	0.61	13.7	Y672A-44 5.2KW	YCJ132-S 1.5KW	----
NZS-45	Φ45m	45	4.633	1590	Manual	----	20	Y672A-44 5.2KW	YCJ160-S 2.2KW	515
NT-15	Φ15m	15	3.5	177	----	----	8.4	Y132M2-6 5.5KW	----	390
NQ-18	Φ18m	18	3.5	255	----	----	10	Y132M2-6 5.5KW	----	560
NQ-24	Φ24m	24	3.4	452	----	----	12.7	Y160M-6 7.5KW	----	1000
NQ-30	Φ30m	30	3.6	707		----	16	Y160M-6 7.5KW	----	1570
NJ-38	Φ38m	38	4.9	1134	----	----	10-25	JZT252-4 11KW	Y160M-6 7.5KW	1600
NT-45	Φ45m	45	5.05	1590	Auto	----	19.3	Y160L-6 11KW	----	2400
NTJ-53	Φ53m	53	5.07	2202	----	----	23.18	Y180L-6 15kw	----	6250
NT-100	Φ100m	100	5.65	7846	----	----	43	Y180L-6 15KW	----	3030

Specification		Deposit square(m²)	Processing capacity (t/d)
Model	Specification	Pond degree	Processing capacity (t/d)
NZS-1	Φ1.8m	2.54	5.6
NZS-3	Φ3.6m	10.2	22.4
NZS-6	Φ6m	28.3	62
NZSF-6	Φ6m	28.3	62
NZ-9	Φ9m	63.6	140
NZS-9	Φ9m	63.6	140
NZS-12	Φ12m	113	250
NZ-15	Φ15m	176	350
NZ-20	Φ20m	314	960
NZ-30	Φ30m	707	----
NZS-45	Φ45m	1590	515
NT-15	Φ15m	177	390
NQ-18	Φ18m	255	560
NQ-24	Φ24m	452	1000
NQ-30	Φ30m	707	1570
NJ-38	Φ38m	1134	1600
NT-45	Φ45m	1590	2400
NTJ-53	Φ53m	2202	6250
NT-100	Φ100m	7846	3030

GLOBAL COOPERATION

Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc.
