Magnetic Separator

Applied material --- iron, magnetite, pyrrhotite, calcined ore, ilmenite, etc.

Applied fields --- mining and mineral processing

Feeding size0–3 mm

Capacity1-220 t/h

Are you interested in our machines?

Brief Introduction

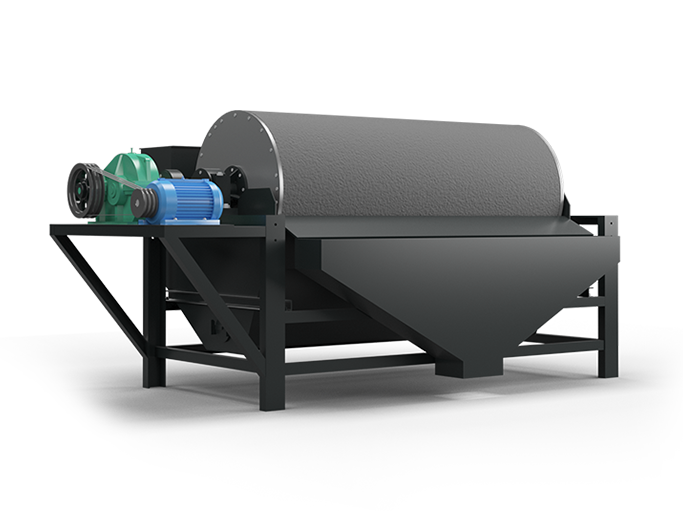

The magnetic ore separator, also known as a magnetic drum separator, was a device used to separate magnetic iron ore (such as magnetite) from non-magnetic material, such as waste rock and other minerals according to the specific magnetic coefficients of various minerals. The magnetic separator is suitable for wet magnetic separation of hematite, magnetite, limonite, ettringite, antimony ore, iron concentrate, magnetite pyrite, ilmenite and other materials with a particle size of 3 mm or less and iron removal operations of coal, non-metallic minerals, building materials, and other materials.

The magnetic field strength of the magnetic separation barrel is stable and the transmission system is reliable. The equipment can be sized according to customers' needs, and the magnetic field strength can be customized.

Advantages

The drum is made of stainless steel and has a long service life.

The movable tank can adjust the concentrate grade and handling capacity.

The dynamic magnetic system design is beneficial to sorting, and the primary grade can be increased by 1-4 times.

The equipment is well-structured, sustainable, with low energy consumption and low failure rate.

Working Principle

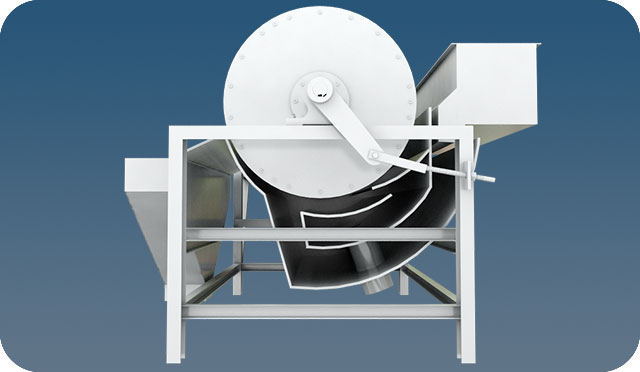

This wet magnetic drum separator is based on the different magnetic susceptibility between the ore minerals, and do mineral separation by magnetic force. When the slurry into the sorting area of wet magnetic separator, due to different magnetic susceptibility, under the magnetic force, the magnetic particles are adsorbed on the cylinder surface of wet magnetic separator, with the cylinder rotation to the concentrate port of discharge, then from the magnetic system into the concentrate tank by concentrate rinse water. Gangue and weak magnetic minerals cannot be attracted by the magnetic force, under the slurry flow force in the tank, they gravity into tailings discharge pipe in the reverse direction of the cylinder rotating.

Technical Data

Model	Shell diameter （mm）	Shell lenght （mm）	Shell rotation speed（r/min）	Feeding size （mm)	Processing capacoty （t/h）	Power（kw）
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
CTB1530	1500	3000	<14	3-0	170-280	11

Model	Feeding size （mm）	Processing capacity （t/h）
CTB6012	2-0	10-20
CTB6018	2-0	15-30
CTB7518	2-0	20-45
CTB9018	3-0	40-60
CTB9021	3-0	45-60
CTB9024	3-0	45-70
CTB1018	3-0	50-75
CTB1021	3-0	50-100
CTB1024	3-0	60-120
CTB1218	3-0	80-140
CTB1224	3-0	85-180
CTB1230	3-0	100-180
CTB1530	3-0	170-280

GLOBAL COOPERATION

Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc.
