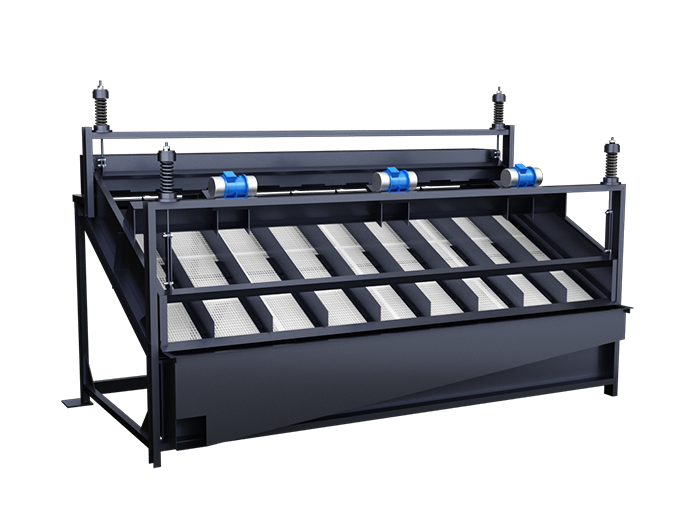

High-Frequency Vibrating Screen

Applied materials --- gold ore, iron ore, copper ore, and silica sand

Applied fields --- screening of fine-grained powder materials

Capacity15–48 t/h

Power0.72–2.2 kw

Are you interested in our machines?

Brief Introduction

The high-frequency screen is also called a high frequency vibrating screen. High-frequency vibrating screens are the most important screening machines primarily utilised in the mineral processing industry. The material is sieved or classified according to the particle size.

High frequency vibrating screen are widely used for screening or grading iron ore, gold ore, copper ore, and silica sand. It is especially suitable for the screening of fine-grained powder materials. The graded particle size is 0.074~1mm; the fineness is up to 300 mesh.

Advantages

The high-frequency screen is not easy to block the hole, and the processing capacity and solid recovery rate are high.
The vibration intensity is 2 to 3 times the vibration intensity of a general mechanical vibrating screen. The working noise of the whole machine is below 85dB(A).
Low failure rate, long lifetime and low maintenance costs
The excitation or amplitude of the sieve body can be adjusted to control the particle size.

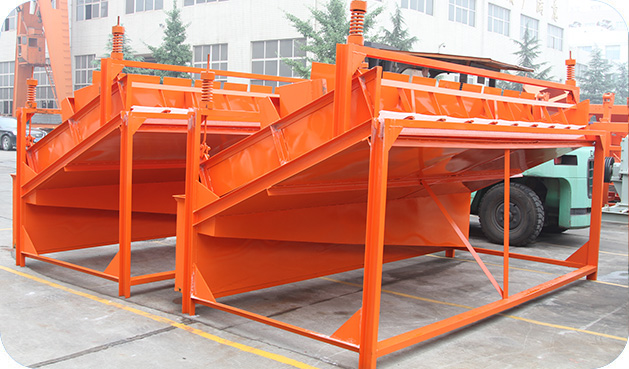

Working Principle

Adopting the new principle design, it is a new type of high-efficiency vibrating screening machine with a screening efficiency of over 70%, small amplitude, and high screening frequency. Different from the principle of general screening equipment, the high-frequency screen uses high frequency and it can destroy the tension of the slurry surface and the high-speed oscillation of the fine material on the sieve surface, accelerate the separation of large-density useful minerals, and increase the probability of separating the material in a smaller particle size.

Service Guarantees

Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Data

Specification Model	Processing capacity(t/h)	Power (kw)
GPS-4	15-25	0.72
GPS-5	20-30	1.1
GPS-6	24-36	1.5
GPS-7	32-48	2.2

Specification Model	Processing capacity(t/h)	Power (kw)
GPS-4	15-25	0.72
GPS-5	20-30	1.1
GPS-6	24-36	1.5
GPS-7	32-48	2.2

WHY CHOOSE US

We will deliver products timely by contract. We will supply you with installation drawings, specifications and operation manual. We offer lifetime warranty and components for products.

GLOBAL COOPERATION

Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc.
