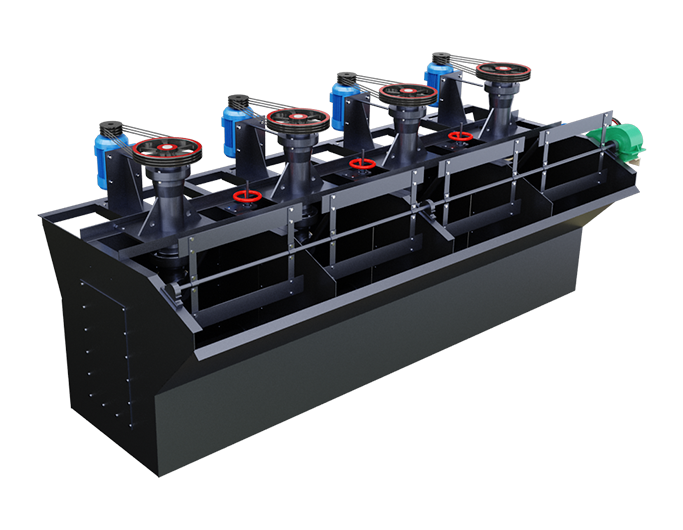

Flotation Machine

Applied material --- gold, copper, zinc, lead, nickel, manganese ore, and non-metallic mineral

Applied fields --- mineral processing

Capacity0.18-20 m³/min

Rotation speed180-483 r/min

Are you interested in our machines?

Brief Introduction

Flotation, in mineral processing, method used to separate and concentrate ores by altering their surfaces to a hydrophobic or hydrophilic condition—that is, the surfaces are either repelled or attracted by water.

Froth flotation can selectively separate core minerals from middlings or tailings, making them high-grade mineral concentrate. Since froth flotation can separate minerals from already processed concentrates besides the primary ore, it is considered to have high efficiency in recovering minerals.

Advantages

The ore particles are well suspended, the flotation index is high. The medium mine does not need a foam pump, and the flotation efficiency is high.

High inspiratory capacity, low energy consumption, 30%-50% energy saving than general flotation machines, good pulp circulation, little consumption of chemicals, thereby reducing consumption by 10%-15%.

Small footprint, simple operation control, and convenient adjustment.

The flotation machine has its own high configuration and long service life.

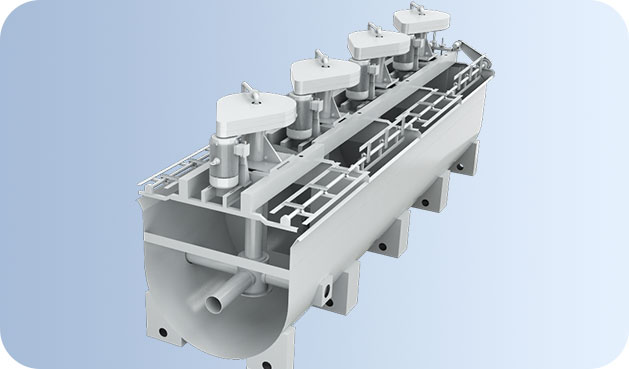

Working Principle

In the flotation machine, the slurry after the addition of the chemical treatment is stirred and aerated, so that some of the ore particles are selectively fixed on the bubbles and the surface of the slurry is scraped to form a foam product, with the other part left in the slurry, which achieves the purpose of separating minerals.

Technical Data

SF Series Flotation Machines

BF Series Flotation Machines

KYF Series Flotation Machines

XCF Series Flotation Machine

Category	Model	Effective Volume (m³)	Processing capacity	Main shaft		Loam board		Dimensions (LxWxH) (M)
Category	Model	Effective Volume (m³)	Processing capacity	Power (kw)	Rotate speed (r/min)	Rotate speed (r/min)	Power (kw)	Dimensions (LxWxH) (M)
XJK type flotation machine	XJK-0.35	0.35	0.18-0.4	1.5	483	25	1.1	0.7×0.7×0.7
	XJK-0.62	0.62	0.3-0.9	3	400	25	1.1	0.9×0.82×0.85
	XJK-1.1	1.1	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1.0
	XJK-2.8	2.8	1.5-3.5	11	280	25	1.1	1.75×1.6×1.1
	XJK-5.8	5.8	5-7	22	240	25	1.5	2.2×2.2×1.2
SF type flotation machine	SF-0.37	0.37	0.2-0.4	1.5	386	25	1.1	0.7×0.7×0.75
	SF-0.7	0.7	0.3-0.9	3	400	25	1.1	0.9×0.82×0.95
	SF-1.2	1.2	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1.1
	SF-2.8	2.8	1.5-3.5	11	268	25	1.1	1.75×1.6×1.15
	SF-4	4	2-4	15	220	25	1.5	1.85×2.05×1.2
	SF-8	8	4-8	30	191	25	1.5	2.2×2.9×1.4
	SF-10	10	5-10	30	191	25	1.5	2.2×2.9×1.7
	SF-20	20	5-20	30×2	191	25	1.5	2.85×3.8×2.0
JJF type flotation machine	JJF-2	2	1-3	7.5	443	25	1.5	1.4×1.4×1.1
	JJF-4	4	2-4	11	305	25	1.5	1.6×2.15×1.25
	JJF-8	8	4-8	22	233	25	1.5	2.2×2.9×1.4
	JJF-10	10	5-10	22	233	25	1.5	2.2×2.9×1.7
	JJF-16	16	5-16	30	180	25	1.5	2.85×3.8×1.7
	JJF-20	20	5-20	37	180	25	1.5	2.9×3.8×2.0

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Effective Volume (m³)	Processing capacity
XJK-0.35	0.35	0.18-0.4
XJK-0.62	0.62	0.3-0.9
XJK-1.1	1.1	0.6-1.6
XJK-2.8	2.8	1.5-3.5
XJK-5.8	5.8	5-7
SF-0.37	0.37	0.2-0.4
SF-0.7	0.7	0.3-0.9
SF-1.2	1.2	0.6-1.6
SF-2.8	2.8	1.5-3.5
SF-4	4	2-4
SF-8	8	4-8
SF-10	10	5-10
SF-20	20	5-20
JJF-2	2	1-3
JJF-4	4	2-4
JJF-8	8	4-8
JJF-10	10	5-10
JJF-16	16	5-16
JJF-20	20	5-20

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Trough volume (m³)	Inside dimensions (L×W×H) (m)	Air suction amount (m³·min)	Power (kw)	Motor model	Processing capacity (m³/min)
BF-0.37	0.37	0.74×0.74×0.75	0.9～1.05	1.5	Y90L-4	0.2～0.4
BF-0.65	0.65	0.85×0.95×0.9	0.9～1.10	3.0	Y132S-6	0.3～0.7
BF-1.2	1.2	1.05×1.15×1.10	1.0～1.10	5.5 4.0	Y132M2-6 Y132M1-6	0.6～1.2
BF-2.0	2.0	1.40×1.45×1.12	1.0～1.10	7.5	Y160M-6	1.0～2.0
BF-2.8	2.8	1.65×1.65×1.15	0.9～1.10	11	Y180L-8	1.4～3.0
BF-4.0	4.0	1.9×2.0×1.2	0.9～1.10	15	Y200L-8	2～4
BF-6.0	6.0	2.2×2.35×1.3	0.9～1.10	18.5	Y225S-8	3～6
BF-8.0	8.0	2.25×2.85×1.4	0.9～1.10	22 30	Y225M-8 Y250M-8	4～8
BF-10	10	2.25×2.85×1.7	0.9～1.10	22 30	Y225M-8 Y250M-8	5～10
BF-16	16	2.85×3.8×1.7	0.9～1.10	37 45	Y280S-8 Y280M-8	8～16
BF-20	20	2.85×3.8×2.0	0.9～1.10	37 45	Y280S-8 Y280M-8	10～20
BF-24	24	3.15×4.15×2.0	0.9～1.10	45	Y280M-8	12～24

Model	Trough volume (m³)	Processing capacity (m³/min)
BF-0.37	0.37	0.2～0.4
BF-0.65	0.65	0.3～0.7
BF-1.2	1.2	0.6～1.2
BF-2.0	2.0	1.0～2.0
BF-2.8	2.8	1.4～3.0
BF-4.0	4.0	2～4
BF-6.0	6.0	3～6
BF-8.0	8.0	4～8
BF-10	10	5～10
BF-16	16	8～16
BF-20	20	10～20
BF-24	24	12～24

Model		KYF-1	KYF-2	KYF-3	KYF-4	KYF-8	KYF-16	KYF-24	KYF-38
Chute Dimensions	Length（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Width（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Height（mm）	1100	1250	1400	1500	1950	2400	2900	3400
Single effective Weight（t）		1.1	1.5	1.9	2.3	3.6	5.9	9.9	15.1
Effective cubage（m³）		1	2	3	4	8	16	24	38
Production Capacity (m³/min)		0.2-1	0.4-2	0.6-3	1.2-4	3—8	4—6	4—24	10—38
Main shaft motor	Model	Y132M1-6	Y160M2-8	Y160L-8	Y180L-8	Y200L-8	Y250M-8	Y250M-8	Y280S-8
	Power（kw）	4	5.5	7.5	11	15	30	30	37
	Rotate speed(r/min)	960	720	720	970	730	730	730	740
	Diameter（mm）	340	410	480	550	630	740	800	880
	Height（mm）	215	256	300	340	390	460	—	545
	Rotate speed(r/min)	281	247	219	200	175	160	150	138
	Circular velocity(m/s)	5	5.3	5.5	5.76	5.77	6.7	6.25	6.36
Loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power（kw）	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotate speed(r/min)	1400	1400	1400	1400	1400	1400	1400	1400
Loam board	Rotate speed(r/min)	18	18	16	16	16	16	16	16
Loam board	Diameter（mm）	500	500	580	600	600	700	700	500
Wind pressure of fan（kpa）		≥12.6	≥14.7	≥19.8	≥19.8	≥21.6	≥25.5	≥30.4	≥34.3
Max. air injection amount(m³.min)		2	2	2	2	2	2	2	2

Model	Effective cubage (m³)	Production Capacity (m³/min)
KYF-1	1	0.2-1
KYF-2	2	0.4-2
KYF-3	3	0.6-3
KYF-4	4	1.2-4
KYF-8	8	3-8
KYF-16	16	4-6
KYF-24	24	4-24
KYF-38	38	10-38

Model		XCF-1	XCF-2	XCF-3	XCF-4	XCF-8	XCF-16	XCF-24	XCF-38
Dimensions	Length（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Width（mm）	1000	1300	1600	1800	2200	2800	3100	3600
	Height（mm）	1100	1250	1400	1500	1950	2400	10819	3400
Single Effective Weight（t）		1.2	1.7	2.3	2.7	3.9	6.6	8.0	16.8
Effective cubage（m³）		1	2	3	4	8	16	24	38
Production Capacity (m³/min)		0.2—1	0.4—2	0.6—3	1.2—4	3—8	4—16	4—24	10—38
Main shaft motor	Model	Y132M2-6	Y160M-6	Y160L-6	Y180L-6	Y200L2-6	Y280S-8	Y280S-8	Y280S-6
Main shaft motor	Power（kw）	5.5	7.5	11	15	22	37	37	45
Impeller	Rotate speed(r/min)	960	970	970	970	970	740	740	980
	Diameter（mm）	400	460	540	620	720	860	950	—
	Height（mm）	155	175	207	247	321	349	—	—
	Rotate speed(r/min)	358	331	266	215	185	160	153	—
	Circular velocity(m/s)	7.5	7.5	7.5	7	6.97	7.6	7.6	7.4
loam board motor	Model	Y90S-4	Y90S-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
	Power（kw）	1.1	1.1	1.5	1.5	1.5	1.5	1.5	1.5
	Rotate speed(r/min)	1400	1400	1400	1400	1400	1400	1400	1400
loam board	Rotate speed(r/min)	18	18	16	16	16	16	16	16
loam board	Diameter（mm）	500	500	580	600	600	700	700	700
Wind pressure of fan （kpa）		≥12.6	≥14.7	≥19.8	≥19.8	≥21.6	≥25.5	≥30.4	≥34.3
Max. air injection amount(m³.min)		2	2	2	2	2	2	2	2

Model	Effective cubage(m³)	Production Capacity (m³/min)
XCF-1	1	0.2-1
XCF-2	2	0.4-2
XCF-3	3	0.6-3
XCF-4	4	1.2-4
XCF-8	8	3-8
XCF-16	16	4-16
XCF-24	24	4-24
XCF-38	38	10-38

GLOBAL COOPERATION

Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc.
