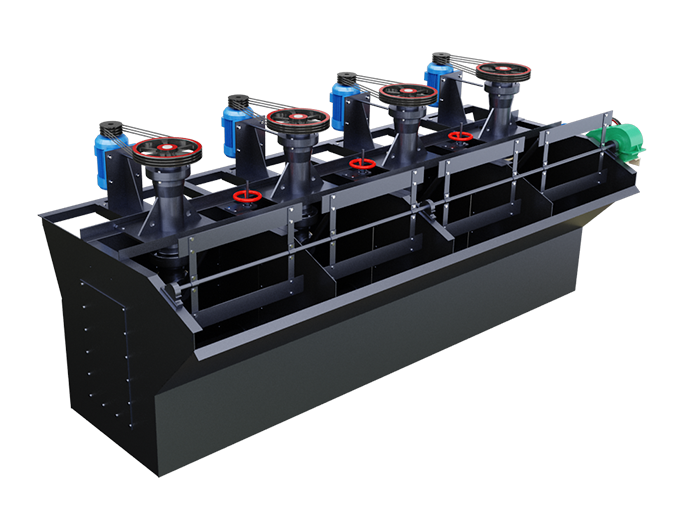

Flotation Cell

Applied material --- gold, copper, zinc, lead, nickel, manganese ore, etc. and non-metallic mineral

Applied fields --- mineral processing

Capacity0.18-20m³/min

Rotation speed180-483r/min

Are you interested in our machines?

Brief Introduction

Flotation, in mineral processing, method used to separate and concentrate ores by altering their surfaces to a hydrophobic or hydrophilic condition—that is, the surfaces are either repelled or attracted by water.

Froth flotation can selectively separate core minerals from middlings or tailings, making them high-grade mineral concentrate. Since froth flotation can separate minerals from already processed concentrates besides the primary ore, it is considered to have high efficiency in recovering minerals.

Advantages

The unmanned automatic control system has the functions of suction and flotation and does not require any auxiliary equipment.

The effective flotation volume of one tank is increased; the output is increased; the work efficiency is improved, and various rough selection, sweeping, and selection operation modes are satisfied.

The degree of foam refinement is high, and the accuracy of flotation is increased by 3-5%.

Compared with conventional machines, it can save 1/3~1/2 of electric power and has lower operating costs.

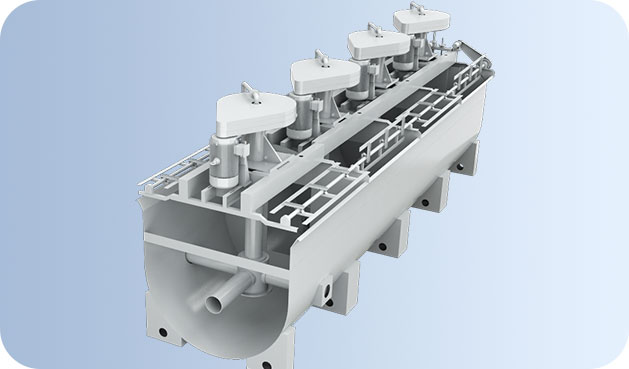

Working Principle

In the flotation cell, the slurry after the addition of the chemical treatment is stirred and aerated, so that some of the ore particles are selectively fixed on the bubbles and the surface of the slurry is scraped to form a foam product, with the other part left in the slurry, which achieves the purpose of separating minerals.

Technical Data

Category	Model	Effective Volume (m³)	Processing capacity	Main shaft		Loam board		Dimensions (LxWxH) (M)
Category	Model	Effective Volume (m³)	Processing capacity	Power (kw)	Rotate speed (r/min)	Rotate speed (r/min)	Power (kw)	Dimensions (LxWxH) (M)
XJK type flotation machine	XJK-0.35	0.35	0.18-0.4	1.5	483	25	1.1	0.7×0.7×0.7
	XJK-0.62	0.62	0.3-0.9	3	400	25	1.1	0.9×0.82×0.85
	XJK-1.1	1.1	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1.0
	XJK-2.8	2.8	1.5-3.5	11	280	25	1.1	1.75×1.6×1.1
	XJK-5.8	5.8	5-7	22	240	25	1.5	2.2×2.2×1.2
SF type flotation machine	SF-0.37	0.37	0.2-0.4	1.5	386	25	1.1	0.7×0.7×0.75
	SF-0.7	0.7	0.3-0.9	3	400	25	1.1	0.9×0.82×0.95
	SF-1.2	1.2	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1.1
	SF-2.8	2.8	1.5-3.5	11	268	25	1.1	1.75×1.6×1.15
	SF-4	4	2-4	15	220	25	1.5	1.85×2.05×1.2
	SF-8	8	4-8	30	191	25	1.5	2.2×2.9×1.4
	SF-10	10	5-10	30	191	25	1.5	2.2×2.9×1.7
	SF-20	20	5-20	30×2	191	25	1.5	2.85×3.8×2.0
JJF type flotation machine	JJF-2	2	1-3	7.5	443	25	1.5	1.4×1.4×1.1
	JJF-4	4	2-4	11	305	25	1.5	1.6×2.15×1.25
	JJF-8	8	4-8	22	233	25	1.5	2.2×2.9×1.4
	JJF-10	10	5-10	22	233	25	1.5	2.2×2.9×1.7
	JJF-16	16	5-16	30	180	25	1.5	2.85×3.8×1.7
	JJF-20	20	5-20	37	180	25	1.5	2.9×3.8×2.0

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Effective Volume (m³)	Processing capacity
XJK-0.35	0.35	0.18-0.4
XJK-0.62	0.62	0.3-0.9
XJK-1.1	1.1	0.6-1.6
XJK-2.8	2.8	1.5-3.5
XJK-5.8	5.8	5-7
SF-0.37	0.37	0.2-0.4
SF-0.7	0.7	0.3-0.9
SF-1.2	1.2	0.6-1.6
SF-2.8	2.8	1.5-3.5
SF-4	4	2-4
SF-8	8	4-8
SF-10	10	5-10
SF-20	20	5-20
JJF-2	2	1-3
JJF-4	4	2-4
JJF-8	8	4-8
JJF-10	10	5-10
JJF-16	16	5-16
JJF-20	20	5-20

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
