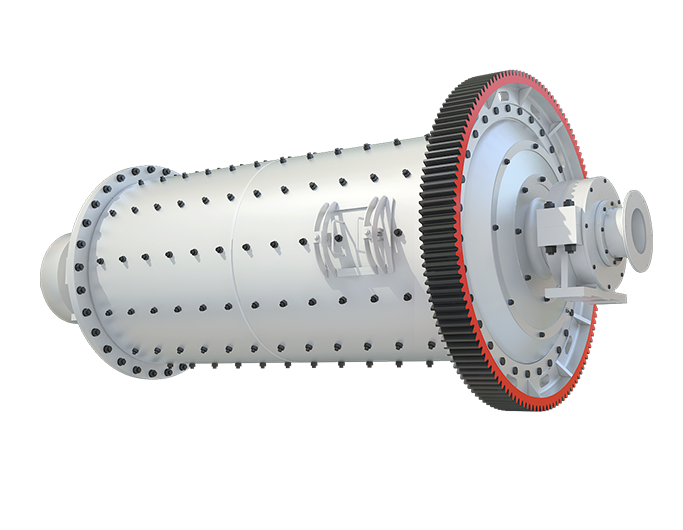

Ceramic Ball Mill

Applied material --- Non-Metalic ore, like limestone, dolomite, quartz, calcium carbonate, feldspar, cement, clay, marble, calcite, clinker, barite, gypsum, etc.

Applied fields --- mining, ceramic industry, building materials, and environmental protection departments

Capacity0.05–15 t/h

Rotation speed13.5–50 r/min

Are you interested in our machines?

Brief Introduction

The ceramic ball mill is a ball mill with a ceramic substrate. It is a new type of energy-saving ball mill that can be used for grinding various materials, both dry and wet. The machine can be used according to different product types to meet different needs.Ceramic ball mill is suitable for the mixing and grinding of various materials, such as river quartz, gold ore, iron ore, cement clinker, copper ore, pyrrhotite, copper ore, river sand, and glass in many industries such as silicate products, building materials, metallurgy, chemical materials, fertilizers, and non-ferrous metal dressing and glass ceramics.

Advantages

The product particles are relatively uniform.

The yield is about 25% higher than that of the conventional equipment; the unit power consumption is about 26% lower and the grinding consumption is also less compared with others.

The replacement cycle of components is long. There is no noise during operation, and the failure rate is low.

The outlet is designed reasonably; the grinding efficiency is high; the quality of the liner is good, and the investment cost is low.

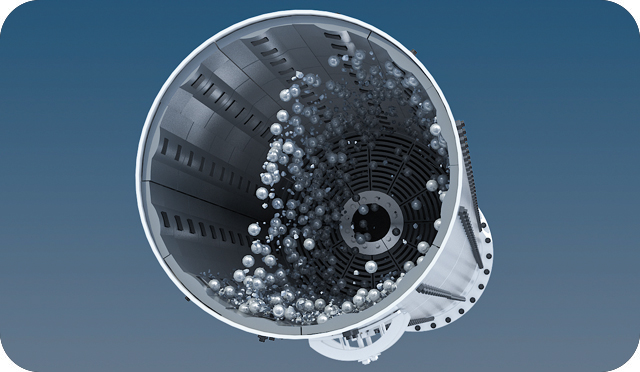

Working Principle

Ceramic ball mill is a kind of grinding equipment that can work continuously for 24 hours. The continuous ball mill in the ceramic industry is mainly composed of a transmission device, a cylinder device, a feeding device, a discharging device and an electrical control device.The motor drives the cylindrical plate to rotate through the reducer. The ore is gradually broken under the action of impact and grinding. The crushed ore is discharged out of the barrel through the discharge part. The discharged minerals are classified in the spiral classifier to collect qualified products, and the unqualified ones are returned to the ceramic ball mill through the combined feeder to continue grinding.

Technical Data

Ball Mill

Ceramic Ball Mill

Rod Mill Sand Making Machine

Model	Shell rotation speed （r/min）	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	As per process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	As per process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	As per process conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525

Model	Feeding size (mm)	Capacity (t/h)
Ф900×1800	<20	0.65-2
Ф900×3000	<20	1.1-3.5
Ф1200×2400	<25	1.5-4.8
Ф1200×3000	<25	1.6-5
Ф1200×4500	<25	1.6-5.8
Ф1500×3000	<25	2-5
Ф1500×4500	<25	3-6
Ф1500×5700	<25	3.5-6
Ф1830×3000	<25	4-10
Ф1830×4500	<25	4.5-12
Ф1830×6400	<25	6.5-15
Ф1830×7000	<25	7.5-17
Ф2100×3000	<25	6.5-36
Ф2100×4500	<25	8-43
Ф2100×7000	<25	12-48
Ф2200×4500	<25	9-45
Ф2200×6500	<25	14-26
Ф2200×7000	<25	15-28
Ф2200×7500	<25	15-30
Ф2400×3000	<25	7-50
Ф2400×4500	<25	8.5-60
Ф2700×4000	<25	22-80
Ф2700×4500	<25	26-90
Ф3200×4500	<25	As per process conditions
Ф3600×4500	<25	As per process conditions
Ф3600×6000	<25	As per process conditions
Ф3600×8500	<25	45.8-256
Ф4000×5000	<25	45-208
Ф4000×6000	<25	65-248
Ф4000×6700	<25	75-252
Ф4500×6400	<25	84-306
Ф5030×6400	<25	98-386
Ф5030×8300	<25	118-500
Ф5500×8500	<25	148-615

Model	Feeding capacity （t/time）	Shell rotation speed （r/min）	Reference motor （kw）	Liner material
600×700	0.05	50	2.2	Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials）
800×600	0.075	42	3
900×1200	0.2	38.5	5.5
1300×1500	0.5	33	7.5
1500×1800	1.2	28.5	11
1800×2000	1.5	24	15
2600×2800	5	16.5	37
3000×3800	10	14.5	57.2
3200×4600	15	13.5	75

Model	Feeding capacity （t/time）	Shell rotation speed （r/min）	Liner material
600×700	0.05	50	Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials）
800×600	0.075	42
900×1200	0.2	38.5
1300×1500	0.5	33
1500×1800	1.2	28.5
1800×2000	1.5	24
2600×2800	5	16.5
3000×3800	10	14.5
3200×4600	15	13.5

Model	Shell Specifications (mm)		Shell rotation speed (r/min)	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
Model	Diameter	Length	Shell rotation speed (r/min)	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)	Power (kw)	Total weight (t)
MBS0918	900	1800	36-38	≤25	0.833-0.147	0.62-3.2	18.5	5.9
MBS0924	900	2400	36	≤25	0.833-0.147	0.81-4.3	22	6.7
MBS1224	1200	2400	36	≤25	0.833-0.147	1.1-4.9	30	13.9
MBS1530	1500	3000	29.7	≤25	0.833-0.147	2.4-7.5	75	19.8
MBS1830	1830	3000	25.4	≤25	0.833-0.147	4.8-11.6	130	34.9
MBS2130	2100	3000	23.7	≤25	0.833-0.147	14-35	155	46.5
MBS2136	2100	3600	23.7	≤25	0.833-0.147	19-43	180	48.7
MBS2430	2400	3000	21	≤50	0.833-0.147	25-65	245	59.7
MBS2736	2700	3600	20.7	≤50	0.833-0.147	32-86	380	92.5
MBS2740	2700	4000	20.7	≤50	0.833-0.147	32-92	400	95
MBS3245	3200	4500	18	≤50	0.833-0.147	64-180	630	149

Model	Feeding size (mm)	Discharging size (mm)	Processing capacity (t/h)
MBS0918	≤25	0.833-0.147	0.62-3.2
MBS0924	≤25	0.833-0.147	0.81-4.3
MBS1224	≤25	0.833-0.147	1.1-4.9
MBS1530	≤25	0.833-0.147	2.4-7.5
MBS1830	≤25	0.833-0.147	4.8-11.6
MBS2130	≤25	0.833-0.147	14-35
MBS2136	≤25	0.833-0.147	19-43
MBS2430	≤50	0.833-0.147	25-65
MBS2736	≤50	0.833-0.147	32-86
MBS2740	≤50	0.833-0.147	32-92
MBS3245	≤50	0.833-0.147	64-180

GLOBAL COOPERATION

Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc.
